Sliding Door System

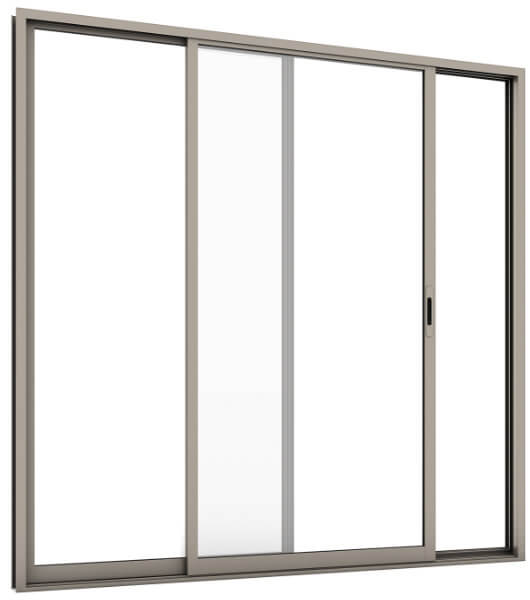

3000 (220) SERIES : Sliding System
Support in every design for modern homes that require large openings to save space. With sliding doors that have been developed to reduce problems in the traditional use Easy to slide open withstand heavy use and also designed a frame that can be connected to each other in many ways To provide designers and users with limitless options.

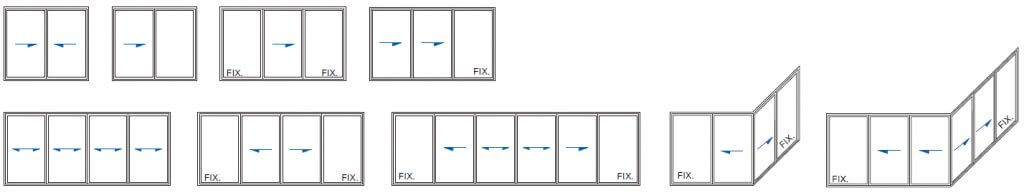

DESIGN OPTIONS
- Choice of traditional 45 mm and narrow 35 mm face frames
- Openings of up to 6 meters.
- Choice of framing and door configurations including a corner door with no post solution designed by SMS BUILDING SYSTEMS
- Mortice or face mounted locks
- Fully integrated insect screen system
- Framing options for both interior and exterior applications
PERFORMANCE
| Water Penetration Resistance | 300-500 pa |
| Air Leakage Tightness Resistance | 200-500 pa |
| Wind Load Pressure Resistance | 800-1,600 pa |

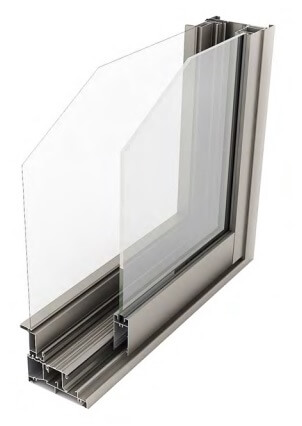

SPECIFICATION
| Glass Thickness | 6-22 mm. |
| Frame Depth | 101.6 mm. |
| Maximum Height of Door | 2,400/2,700 mm. |
| Maximum Width of Door | 850/1,000 mm. |
| Aluminium Thickness | 1.2/1.5 mm. |
| Height of Sill | 45 mm. |
| Insect Screen System | YES |
