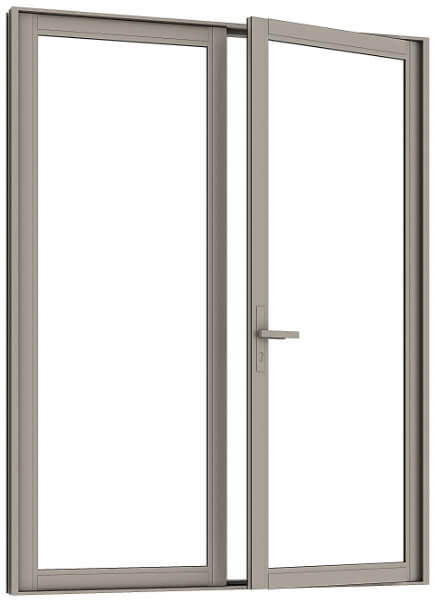

French Door system
5000 (250) SERIES : French Door
Bring new experiences that reflects the image of modernity. with the lines of the aluminum frame Create a playful and design for a door opening. with a slim design but still has waterproof performance and durability in use

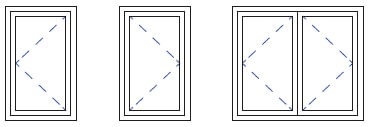

DESIGN OPTIONS

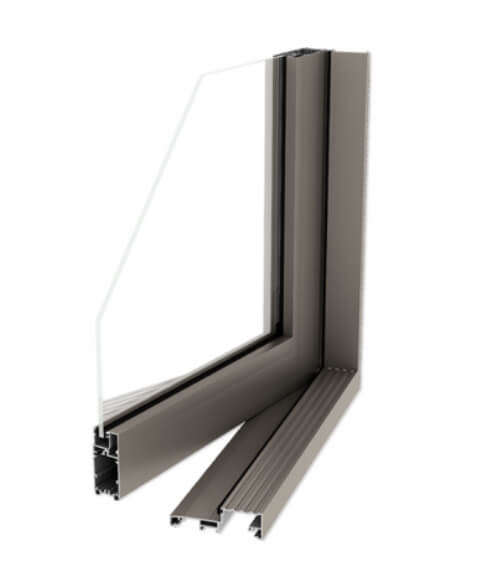

- Slim line perimeter frame and sash components, can handle large door panels
- High performance seals offer improved protection against water leakage, sound transmittance and air infiltration
- Fully integrated insect screen system
- Framing options for both interior and exterior applications
PERFORMANCE
| Water Penetration Resistance | 300-500 pa |
| Air Leakage Tightness Resistance | 200-500 pa |
| Wind Load Pressure Resistance | 800-1,600 pa |
SPECIFICATION
| Glass Thickness | 6-22 mm. |
| Frame Depth | 101.6 mm. |
| Maximum Height of Door | 2,400/2,700 mm. |
| Maximum Width of Door | 850/1,000 mm. |
| Aluminium Thickness | 1.2/1.5 mm. |
| Height of Sill | 45 mm. |
| Insect Screen System | YES |
