Sliding door-window system

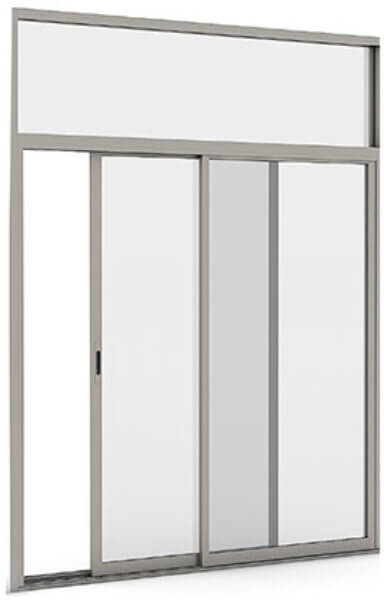

120 SERIES : Sliding System
Sliding door-window system with fixed glass that combines the strengths of PROLINE 100 and HOMELIFE 200 to provide more choices for designers and project owners. Emphasis on strength, safety, flexibility in choosing and can make large openings

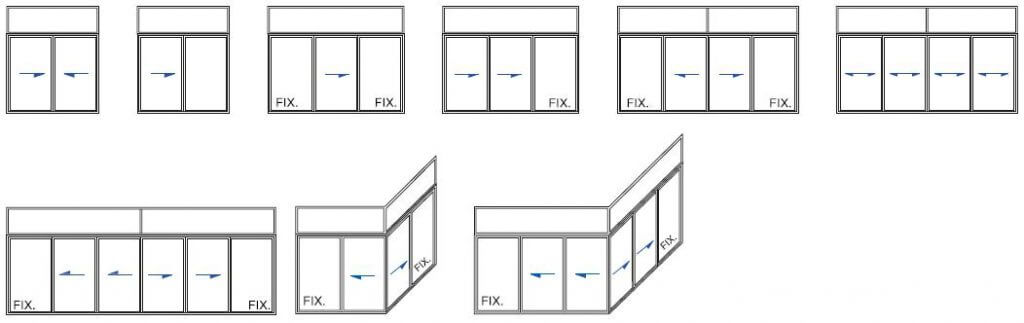

DESIGN OPTIONS
- The normal frame thick is 45 mm. Thin frame, thickness 25 mm.
- Can be assembled in many forms especially the column-less corner sliding door set special design from SMS BUILDING SYSTEMS
- Can be used with HOMELIFE model 200 Series (sliding system)
- Support for installing mosquito Wire Screen.
- There is a frame system to support both external and internal work.
Efficiency
| Prevent water leakage | 300-500 pa |
| Prevent air leakage | 200-500 pa |
| Wind resistance | 800-1,600 pa |
Specific details
| Glass Thickness | 6-22 mm. |
| Frame Depth | 101.6 mm. |
| Maximum Height of Door | 2,400/2,700 mm. |
| Maximum Width of Door | 850/1,000 mm. |
| Aluminium Thickness | 1.2/1.5 mm. |
| Height of Sill | 45 mm. |
| Insect Screen System | YES |
