Casement System

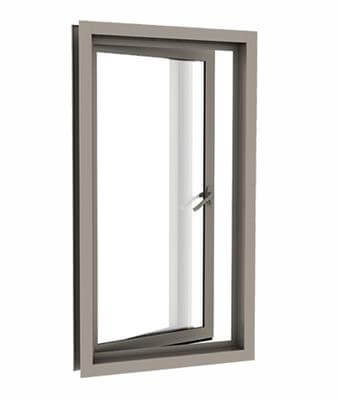

7000 (260) SERIES : Casement System
Uninterrupted from every angle with a set of Shopfront-System panels for building walls that want to stand out. With a frame designed to be slim, it can be used with the HOMELIFE door and window set for various applications.
DESIGN OPTIONS

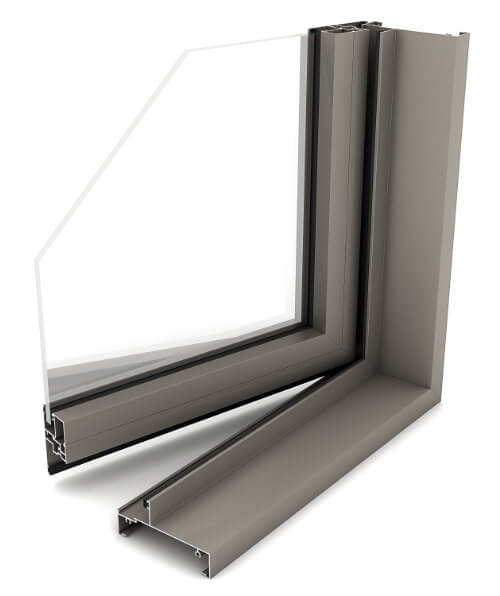

- Slim line perimeter frame and sash components, can handle large sashes
- High performance seals offer improved protection against water leakage, sound transmittance and air infiltration
- Fully integrated insect screen system
PERFORMANCE
| Water Penetration Resistance | 300-500 pa |
| Air Leakage Tightness Resistance | 200-500 pa |
| Wind Load Pressure Resistance | 800-1,600 pa |
SPECIFICATION
| Glass Thickness | 6-22 mm. |
| Frame Depth | 101.6 mm. |
| Maximum Height of Door | 2,400/2,700 mm. |
| Maximum Width of Door | 850/1,000 mm. |
| Aluminium Thickness | 1.2/1.5 mm. |
| Height of Sill | 25 mm. |
| Insect Screen System | YES |
