Awning & Casement System

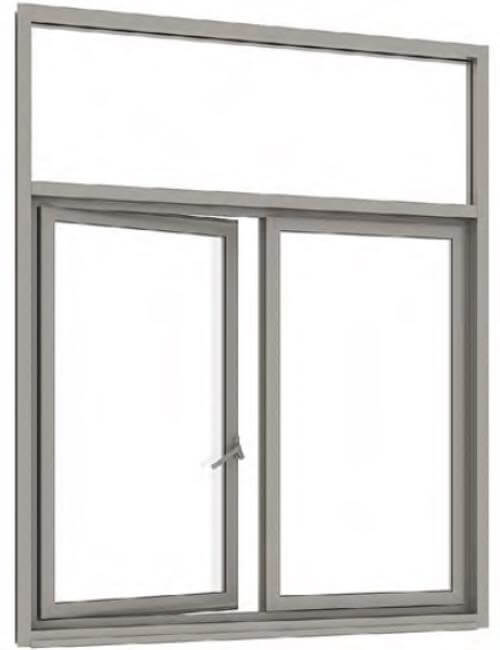

125 Series : Awning & Casement System
Awning & Casement System mixed with Shopfront-System that combines the advantages of PROLINE 100 with HOMELIFE 260, can assemble a variety of frames Expanding usability limits for designers and project owners.

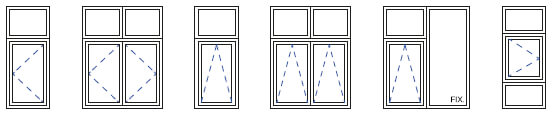

DESIGN OPTIONS
- Choice of traditional 45 mm and narrow 25 mm face frames
- Choice of framing and window configurations
- Compatible with HOMELIFE 260 Series Awning & Casement System
- Self draining seal
- Fully integrated insect screen system
PERFORMANCE
| Water Penetration Resistance | 300-500 pa |
| Air Leakage Tightness Resistance | 200-500 pa |
| Wind Load Pressure Resistance | 800-1,600 pa |
SPECIFICATION
| Glass Thickness | 6-22 mm. |
| Frame Depth | 101.6 mm. |
| Maximum Height of Door | 2,400/2,700 mm. |
| Maximum Width of Door | 850/1,000 mm. |
| Aluminium Thickness | 1.2/1.5 mm. |
| Height of Sill | 45 mm. |
| Insect Screen System | YES |
